Specifies the automated processes to be run on a FrameMaker book that has been generated from a DITA map.

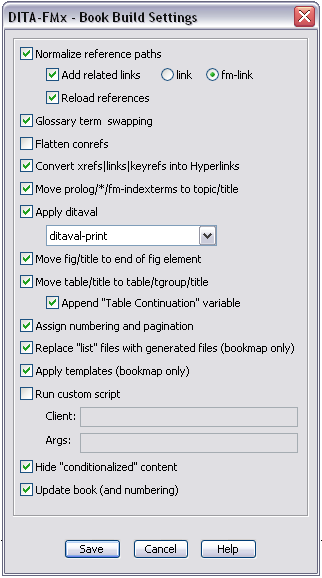

The Generate Book from Map command aggregates all of the topic files referenced by a DITA map (and submaps) into a FrameMaker book and chapter files. After the book has been assembled, a number of processes can be run on the book and book components to prepare it for publishing. The Book Build Settings dialog allows you to specify which of these processes are performed.
The settings in this dialog can be overridden by settings in the BookBuildOverrides section of a ditafmx-bookbuild.ini file (also known as a “book-build INI file”). This dialog should be used for testing of various options, but to ensure consistent book generation, you should set up a book-build INI file for each project.
The options in this dialog specify the processes that are run on the book and are shown in the order that they are run.
- Normalize Reference Paths
- Iterates over all chapter files and converts all href and conref attribute values into absolute paths.
- Add Related Links
- Adds appropriate links to related-links elements in each topic based on the reltable(s) in the DITA map. You can select the link type of “link” or “fm-link” (standard DITA links or FM-based cross-refs). If you use fm-links, the “RelatedLink” cross-reference format is used. This option is only available if the Normalize Reference Paths option has been selected.
- Reload References
- Iterates over all references in all chapters and updates/reloads them based on the rebuilt reference paths. This option is only available if the Normalize Reference Paths option has been selected.
- Glossary Term Swapping
- If enabled, instead of using the glossterm element as the content for a keyref to a glossary entry, the glossSurfaceForm element is used for the first instance of a term in a chapter, and the glossAlt elements are used for later instances.
- Flatten Conrefs
- Runs the Flatten Conrefs command. This is useful if you have conrefs that contain cross-refs (xrefs, links, fm-xrefs, or fm-links) since this will allow those cross-refs to become live hyperlinks.
- Convert Xrefs/Links into Hyperlinks
- Runs the Xref to Hyperlink command. This is only useful if you your files contains DITA xref or link elements. This only processes internal xrefs/links; if you need to make external xrefs into live links, you’ll need to enable the Add Hypertext Marker to External Xrefs option before converting the map to a book.
- Move prolog/*/fm-indexterms to topic/title
- Moves all of the fm-indexterm elements in the prolog to the end of the parent topic’s title element. If this option is not selected, any indexterm elements in the prolog will not be included in a generated index if the prolog is hidden.
- Apply Ditaval as Conditions
Runs the Apply Ditaval as Conditions command. Select a registered ditaval file from the list. Use the Ditaval Manager to register a ditaval file with DITA-FMx.
Important: This option uses the default settings as defined in the Apply Ditaval as Conditions dialog box. In order to change the way the conditions are applied, you must run the Apply Ditaval as Conditions command manually (from the FM File Commands menu) before using this option.- Move fig/title to End of fig Element
- Moves each title of a fig element to the end of the fig element. If a desc element follows the title, it (and any child elements) will be moved as well. Essentially moves the figure title so it follows the image. For this option to work properly, the Book application must have the title element valid at the end of a fig element’s general rule.
- Move table/title to table/tgroup/title
Moves each title of a table element to the location in the FrameMaker object structure that allows it to work as a FM table title is supposed to (appear at the top of the table on new pages). In the FM object model, the tgroup element is actually the “table”, while the table element is just a container that wraps the table.
This option moves the DITA table title so that it works properly in the generated FrameMaker files. If you select the “Append ‘Table Continuation’ variable” option, the Table Continuation variable will be appended to the table title after it is moved to the new location. To modify the text or format of the Table Continuation variable, edit the topic template file. For this option to work properly, the Book application must have the fm-tabletitle element defined and valid as a child of the tgroup element.
- Assign Numbering and Pagination
- Sets up the book component’s numbering properties based on the settings in the ditafmx-bookbuild.ini file. DITA-FMx looks for this INI file in the directory that the book is built in, then in the user’s DITA-FMx folder ().
- Sections named “NumberingFirst-<maptype>” and “NumberingDefault-<maptype>” define the numbering and pagination properties for the first and remainder files created from specific map elements (<maptype> refers to the element name of the top-level map element).
- Replace List Files with Generated Files
Replaces any “list” files with the appropriate corresponding FrameMaker generated list. For example, the frontmatter/booklists/toc entry will be replaced with a generated TOC, and the backmatter/booklists/indexlist entry will be replaced with a generated index.
This replacement relies on settings in the ditafmx-bookbuild.ini file. DITA-FMx looks for this INI file in the directory that the book is built in, then in the user’s DITA-FMx folder (). In the General section of the ditafmx-bookbuild.ini file the BookTemplatesDir parameter indicates the directory that contains the template files used as the basis for generated book components. These files should be named gentpl~<maptype>.fm, where <maptype> is the name of the associated map element that should be replaced with a generated file. Other sections named “GeneratedFile-<maptype>” define the component type and other properties needed for this file replacement.
- Apply Templates
Applies templates (for both formatting and element definitions) to each of the book components based on the settings in the ditafmx-bookbuild.ini file. DITA-FMx looks for this INI file in the directory that the book is built in, then in the user’s DITA-FMx folder ().
In the General section of the ditafmx-bookbuild.ini file the BookTemplatesDir parameter indicates the directory that contains the template files used for this process. These files should be named tpl~<maptype>.fm, where <maptype> is the name of the associated map element that should be updated with the specified template.
- Run Custom Script
Runs a custom FDK client, FrameScript, or ExtendScript (FM10/11/12 only). Enter the client name, and any arguments that are to be passed to the client. If you’d like to pass the FDK ID of the book to the client, enter “%BOOKID%” in the Args field.
To run a FrameScript, enter “fsl” as the client name, and to run an ExtendScript (with FM10/11/12) enter “ScriptingSupport” as the client name. For a FrameScript, the script name is the argument and for an ExtendScript provide the script file name as the argument.
You can run multiple clients by separating the client name and arguments with the vertical bar character. If you are specifying multiple clients, the first character in both the client list and the arguments list must be a vertical bar. Be sure that the number of vertical bars in the client list and argument list are the same to ensure that the arguments are passed to the proper client. If no arguments are needed for certain clients but are needed for others, you can enter a hyphen where no arguments are needed. For example, the following client and argument data will run three FDK clients:
Client:| client1 | client2 | client3
Args:| client1-arg %BOOKID% | client2-arg | client3-arg %BOOKID%
Note: This option runs scripts before “pagination” has been completed. Conditional text is still shown and other formatting processes are yet to be run that will affect pagination. If you need to run a script after pagination has been completed, use the RunPostPaginationScript book-build INI setting, described in Book-Build INI file.- Hide “Conditionalized” Content
- Hides the elements that have been tagged through any of the four “Conditionalize” options in the Options dialog.
- Update Book
Runs the command.
If you need to apply master pages when updating the book, you’ll need to create a book-build INI file (ditafmx-bookbuild.ini), and manually set the UpdateBook parameter to 2 in the BookBuildOverrides section.
